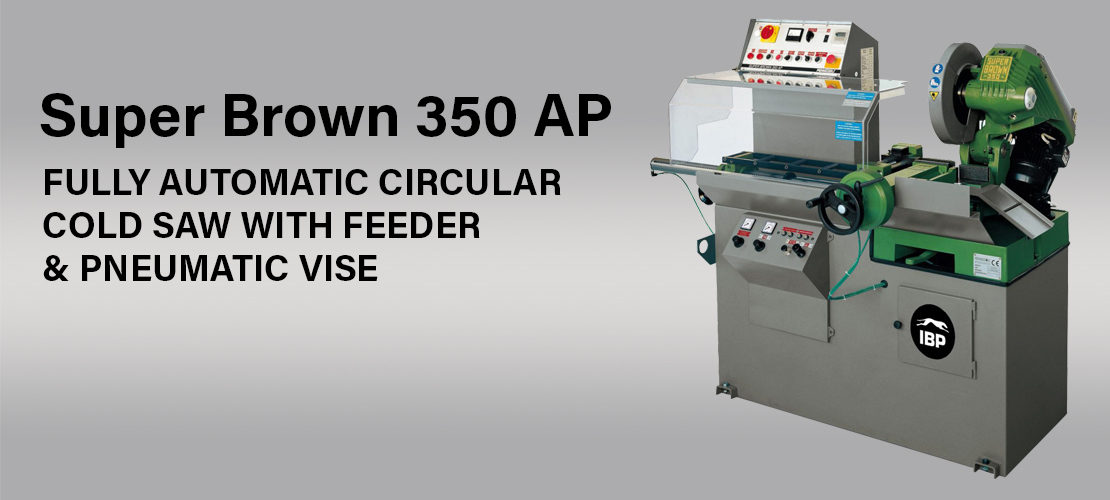

The Pedrazzoli Super Brown 350 AP automatic cold saw combines circular metal cutting with a step feeder and pneumatic vise for repeated cuts in ferrous tube, pipe and profiles. It is intended for production work where automatically advancing the stock can reduce manual measuring and handling.
The control panel is in front of the operator. Adjustable pneumatic controls manage the cutting and feeding movements, and a programmable piece counter supports repeat jobs. Confirm the feeding arrangement, cut lengths and workholding for your application before selecting a configuration.
Super Brown 350 AP — catalog specifications
| Specification |
Catalog value |
| Operation |
Automatic with step feeder and pneumatic vise |
| Round section at a straight (90°) cut |
4 inches |
| Square section at a straight (90°) cut |
3.3 inches |
| Rectangular section at a straight (90°) cut |
6.2 × 3.3 inches |
| Maximum blade diameter |
350 mm |
| Blade speed |
15–90 rpm |
| Motor rating shown in catalog |
1.5 kW |
| Electrical configuration |
The linked catalog lists 240V and 480V configurations. Confirm the electrical phase and voltage of the quoted machine before ordering. |
Capacities above are the straight-cut values in the linked catalog. Miter capacities depend on angle and section shape; use the original chart and confirm your workpiece with CML USA. Catalog configurations are not a statement of current stock availability.
